Javta PU 11-rib roofing panel
Three-layer 11-rib industrial roofing - 1,000 mm effective width, 17 mm ribs
Javta PU 11-rib roofing panel
Three-layer 11-rib roofing panel, 1,000 mm effective width (1,080 mm product width), 17 mm ribs, 0.30 – 0.50 mm steel and a 16 mm PU core at 35 ± 3 kg/m³.
Eleven 17 mm ribs for a flat, even roof plane
A 16 mm PU core for thermal and acoustic performance
Stiff panel, saving on purlins and labour
Product overview

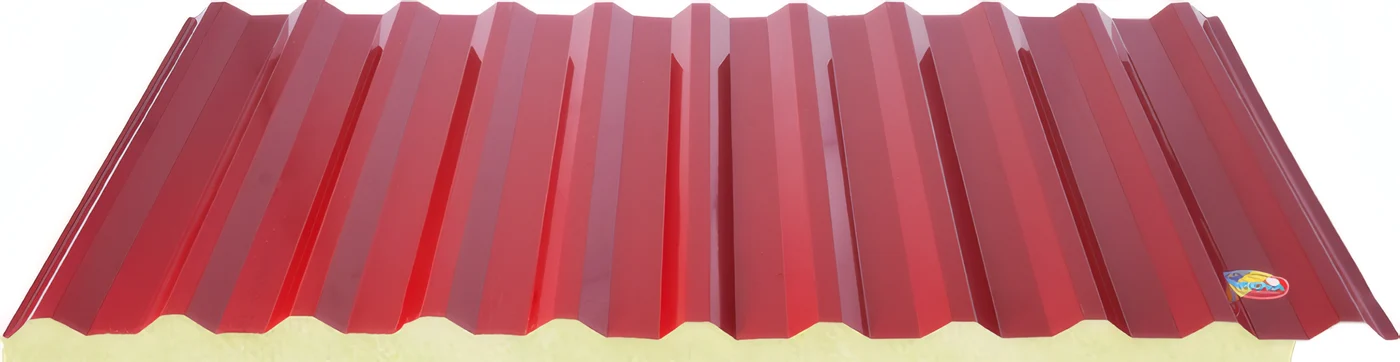

The Javta PU 11-rib panel is the three-layer version of the 11-rib industrial profile: a steel top skin, a PU insulation core and an underside lining. Each sheet carries eleven 17 mm ribs at even spacing, so the roof reads flatter and more regular than the wide-rib profiles — the choice where appearance matters.
The effective width is 1,000 mm (1,080 mm product width) and the PU core is 16 mm at 35 ± 3 kg/m³, giving far better thermal and acoustic performance than single-skin sheet in the same profile. The panel is stiff, easy to handle and saves on purlins and installation labour.
Use it as roofing or wall cladding on factories, warehouses, offices, resorts, farms and swiftlet houses — laid down the slope on a steel frame, with the matching Phu Son roofing and panel trims.
Technical specifications
| First layer | 11-rib steel sheet, 0.30 – 0.50 mm thick — Pre-painted steel |
|---|---|
| Second layer | PU with a density of 35 ± 3 kg/m³ — Insulation core |
| Third layer | PP / Alufim / foil — Underside lining |
| PU core thickness | 16 mm |
| Effective width / product width | 1,000 / 1,080 mm |
| Rib height | 17 mm — Eleven ribs per sheet |
| Maximum length | Within transportable limits |
| Standard steel colors | Red, blue, moss green, jade green, milky white, cream yellow — Per the catalogue color chart |
Standard steel color chart
- Red Red
- Blue Blue
- Moss green Moss green
- Jade green Turquoise
- Milky white White
- Cream yellow Ivory
- Wood grain Wood grain
Beyond the standard chart, Phu Son will produce to a project's own color code on large orders.
Specifications & options
- Three-layer build-up: 11-rib steel 0.30 – 0.50 mm / PU 35 ± 3 kg/m³ / PP - Alufim - foil
- PU core thickness: 16 mm
- Effective width 1,000 mm - product width 1,080 mm
- Rib height: 17 mm, eleven ribs per sheet
- Length: to the roof bay, within transport limits
- Standard colors: red, blue, moss green, jade green, milky white, cream yellow
- Accessories: ridge cap, edge gutter, valley gutter, internal and external corner trims, water stop
- Source: panelphuson.vn
