Javta SeamLock 3-rib roofing panel
Seamed with no fixings through the roof - 1,000 mm effective width, can be curved
Javta SeamLock 3-rib roofing panel

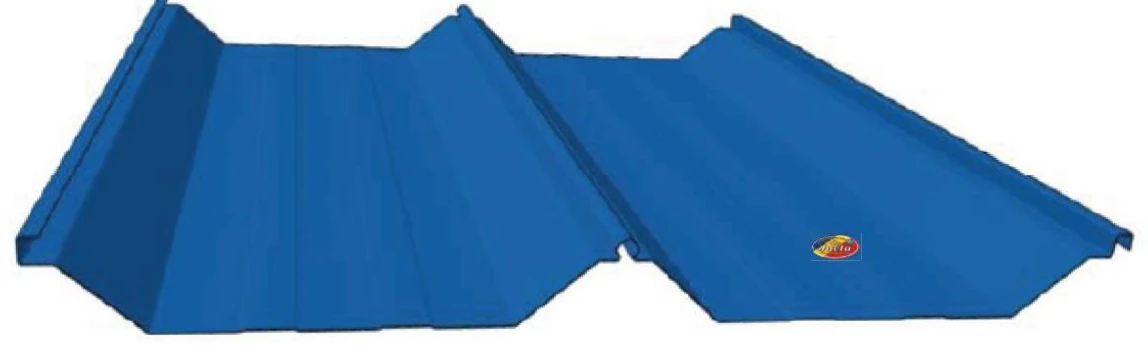

SeamLock 3-rib roofing panel, 1,000 mm effective width, steel 0.30 – 0.80 mm, with optional rock wool / glass wool and an insulating lining.
Product overview
The Javta SeamLock 3-rib panel uses a seam-lock joint — two panels lock together along the rib with no fixings through the roof. This is the line Phu Son has supplied to a number of FDI projects in Tuyen Quang and Hung Yen.
A rock wool or glass wool layer and an insulating underside lining can be added to suit the project. The SeamLock profile can also be curved for arched roofs.
The roof surface carries no screw penetrations at all: sheets lock together on a standing seam held by clips, so the roof withstands storms above force 12 — the choice for large-span factories, low-pitch roofs and coastal sites. The three 82 mm ribs drain very quickly.
Technical specifications
| First layer | SeamLock 3-rib steel sheet, 0.30 – 0.80 mm thick |
|---|---|
| Second layer | Rock wool or glass wool — To suit the application |
| Third layer | Insulating lining layer — To suit the application |
| Rib height | 82 mm — Three ribs per sheet, fast drainage |
| Coil width | 1,200 mm — For the 1,000 mm effective width |
| Base steel grade | G300 – G400 |
| Coating mass | AZ30 – AZ200 · Z30 – Z300 — To suit the site environment |
| Effective width | 1,000 mm — Tolerance ±3 mm |
| Maximum length | Within transportable limits |
| Applications delivered | Javta SeamLock 500 and SeamLock 1000 — See the Projects section: Sunglim Vina, JW Agricultural Products, Hung Huy, Tarpaulin Joyoung Vina |
SeamLock 3-rib steel skinPre-painted steel 0.30 – 0.80 mm thick with ribs that seam together.
Insulation layer (optional)Rock wool or glass wool, to the project's requirements.
Lining layer (optional)An insulating lining underneath that prevents condensation.
Standard steel color chart
- Red Red
- Blue Blue
- Moss green Moss green
- Jade green Turquoise
- Milky white White
- Cream yellow Ivory
- Wood grain Wood grain
Beyond the standard chart, Phu Son will produce to a project's own color code on large orders.
In use on site
Arched and curved roofs
Profile curved to the design

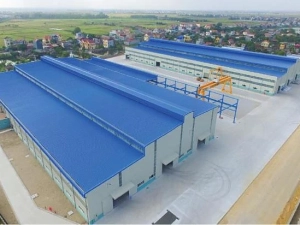

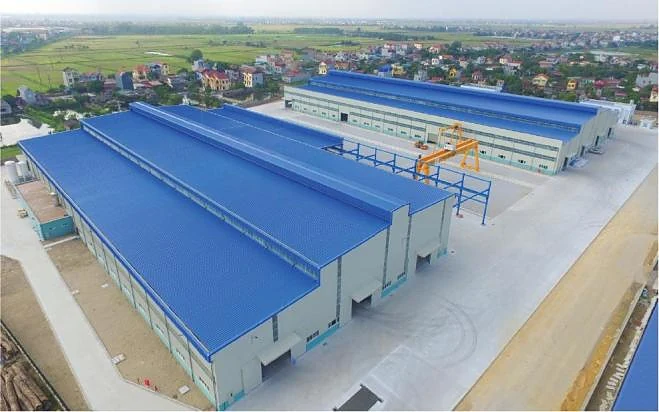

FDI factories

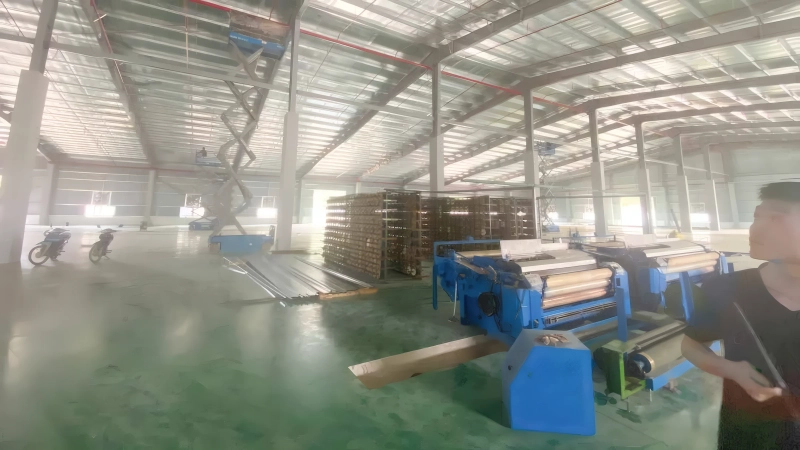

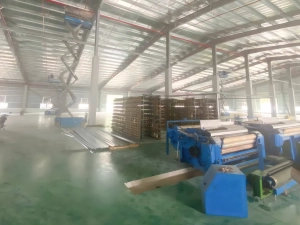

Used at Sunglim Vina and JW Agricultural Products
Specifications & options
- Build-up: SeamLock 3-rib steel sheet 0.30 – 0.80 mm; optional rock wool / glass wool layer and insulating lining
- Rib height: 82 mm, three ribs per sheet
- Coil width: 1,200 mm
- Base steel grade: G300 – G400; coating AZ30 – AZ200, Z30 – Z300
- Effective width: 1,000 mm
- Length: to the roof bay, within transport limits
- Variants delivered: Javta SeamLock 500 and SeamLock 1000
- Source: Phu Son Group 2026 Catalogue
