PU Insulated Panel
Outstanding insulation – energy saving – built to last.
PU Insulated Panel
The PU (polyurethane) panel is an effective insulation solution built around a rigid, high-density PU core that blocks heat transfer, saves energy and keeps the internal environment stable. It is produced on modern lines, installs quickly and suits a wide range of projects.
Outstanding thermal insulation
Energy saving
Flame-spread resistance (optional)
Durable and corrosion-resistant
Fast to install – cost-efficient
Key advantages
Outstanding thermal insulation
The PU core has a low thermal conductivity, holding temperatures steady and cutting running costs.
Energy saving
Takes load off the cooling or heating system and cuts electricity use considerably.
Flame-spread resistance (optional)
Flame-retardant B1/B2 PU cores can be produced to project requirements.
Fast installation
A tongue-and-groove design that is light, quick to install and shortens the build schedule.
Durable & corrosion-resistant
High-grade coated steel that resists rust and stands up to harsh environments.
High aesthetic quality
A flat surface in a wide range of colors, easy to clean and maintain.
Technical specifications
| Core material | PU (polyurethane) — Rigid closed-cell polyurethane core |
|---|---|
| Exterior finish | Steel / stainless steel / aluminium / plain foil — 0.40 – 0.80 mm thick |
| Core density | PU: 40 ± 3 kg/m³ — Per the 2026 catalogue |
| Core thickness – interior wall panel | 40, 50, 75, 100, 125, 150, 200 mm |
| Core thickness – exterior wall panel | 50, 75, 100 mm |
| Effective width / product width – interior wall | 1,130 / 1,152 mm — Tolerance ±2 mm |
| Effective width / product width – exterior wall | 1,000 / 1,050 mm — Tolerance ±2 mm |
| Maximum length | 18,000 mm |
| Joint system | Tongue-and-groove (standard joint) — A two-panel joint with a sealing gasket |
| Standard steel colors | Red, blue, moss green, jade green, milky white, cream yellow, wood grain — 7 colors from the catalogue color chart |
Outer steel facingGalvanized steel / PPGL / stainless steel, 0.3–0.8 mm thick, flat surface, color-fast and corrosion-resistant.
PU insulation coreHigh-density polyurethane (to the product configuration), for effective insulation and energy saving.
Inner steel facingGalvanized steel / PPGL, 0.3–0.8 mm thick, flat surface, easy to clean.
Standard steel color chart
- Red Red
- Blue Blue
- Moss green Moss green
- Jade green Turquoise
- Milky white White
- Cream yellow Ivory
- Wood grain Wood grain
Beyond the standard chart, Phu Son will produce to a project's own color code on large orders.
In use on site
Production facility
Factory walls, ceilings and roofs
Cold storage – Storage warehouses
Holds temperature and protects stored goods
Cleanroom
For clean, sterile environments
Food factories
Meets food hygiene and safety requirements
Offices – Operations buildings
Partitions, ceilings and effective sound insulation
Specifications & options

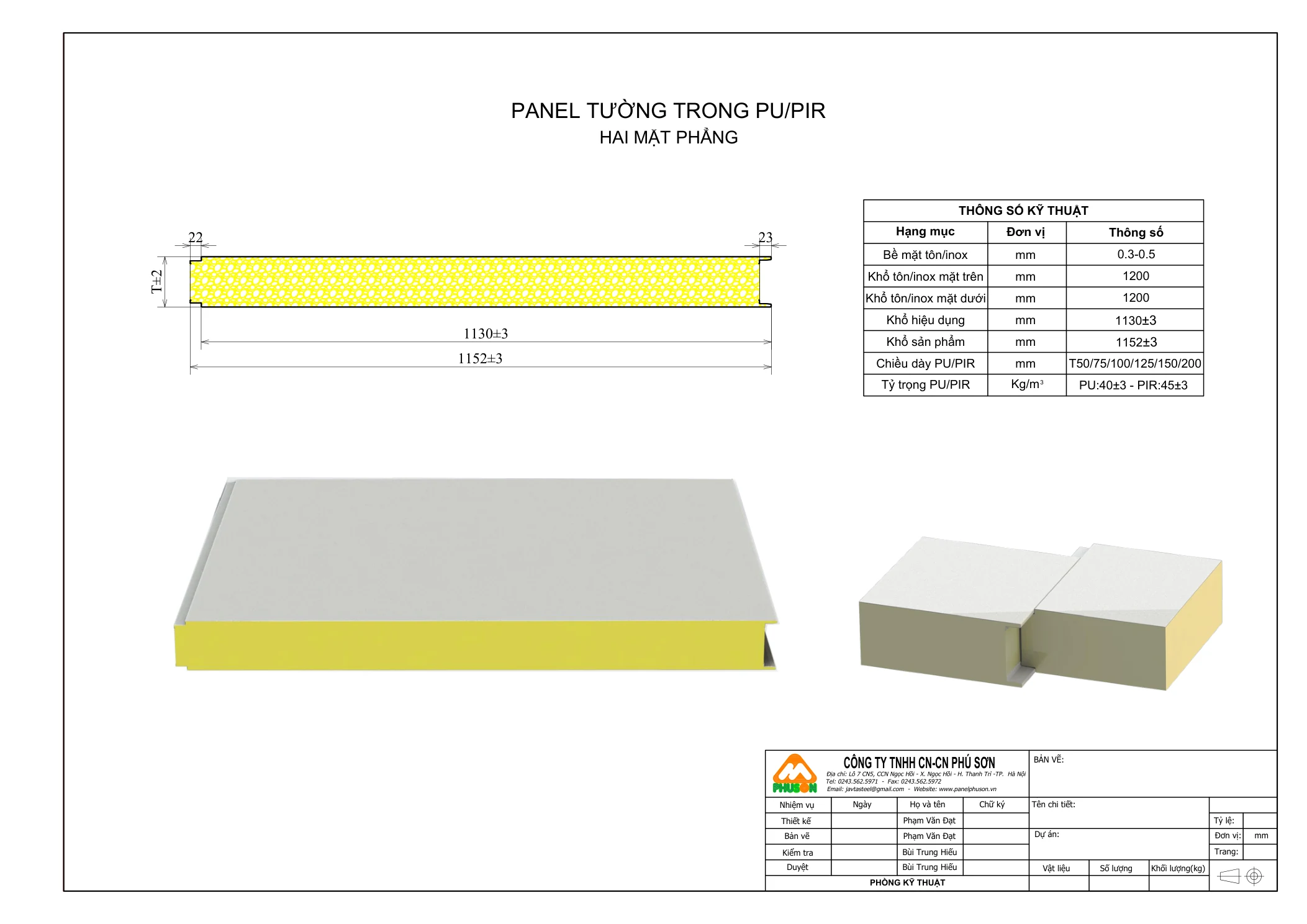

- Interior wall panel: 40/50/75/100/125/150/200 mm thick - effective width 1,130 mm (product width 1,152 mm)
- Exterior wall panel: 50/75/100 mm thick - effective width 1,000 mm (product width 1,050 mm)
- Maximum length: 18,000 mm
- Facing: plain steel / stainless steel / aluminium / foil, 0.40 – 0.80 mm thick
- Standard colors: red, blue, moss green, jade green, milky white, cream yellow, wood grain
- Source: Phu Son Group 2026 Catalogue
Related accessories
- U-shaped aluminium profile
- External corner aluminium profile
- Panel joint trim
- Joint sealant silicone
- Self-drilling screws
